This was a project to draw the 3D models of a 43kg door accessories for an online wholesalers website catalogue from the actual product, as the 3D models from the manufacturers didn’t exist or were unable to acquire.

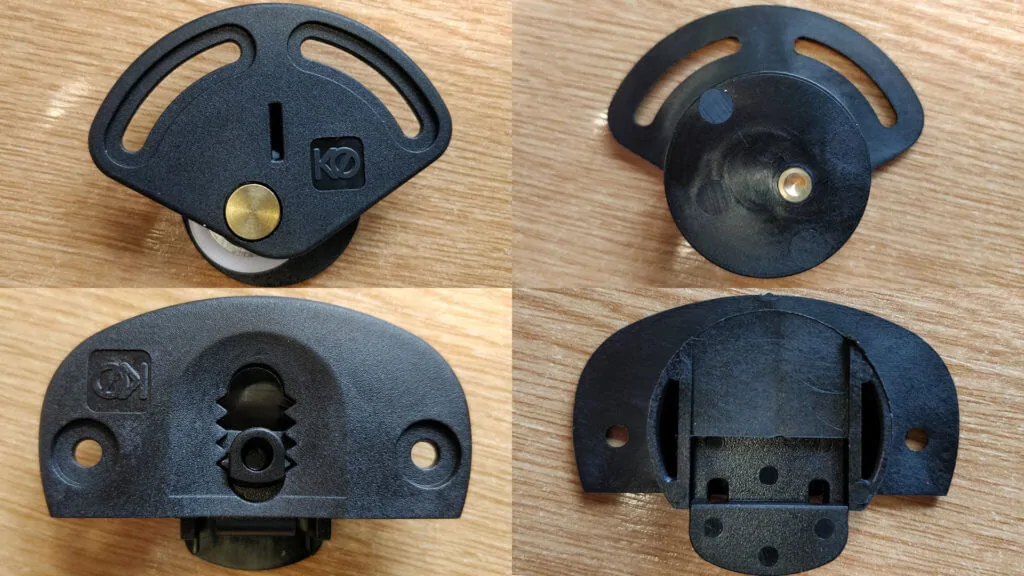

The product was sent to us, we photographed and measured them with a set of callipers, collated all the relevant information to enable us to draw the 3D model accurately.
Then we set about creating the 3D model using AutoCAD Inventor
Finished Model Techincal Drawing
The Completed 3D Models
