Thomas Pink, Heathrow T4

The Brief

  • Update for the Thomas Pink general layout plan following our stripping out, we will send a survey of the shell layout and we need a new drawing to show the shell structure, new stud partitions and critical lengths for the new perimeter furniture. This drawing will also need a typical section showing the construction of the new stud walls and there fixing (we will provide a description)
  • Update the ceiling drawing and construction details for the new light troughs.
  • An updated floor finishes plan shown on the updated floor layout plan mentioned above.
  • Update our shopfront drawings to show the fixing of the fascia and soffit – established when we can see the structure above following the strip out.

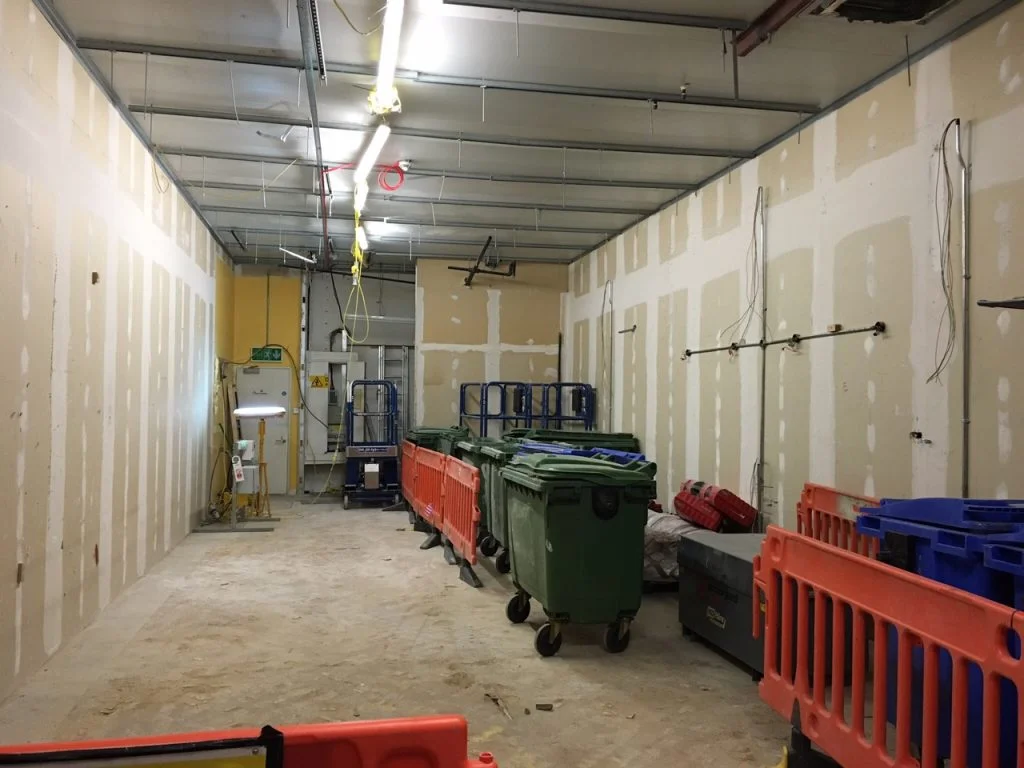

Stipped out

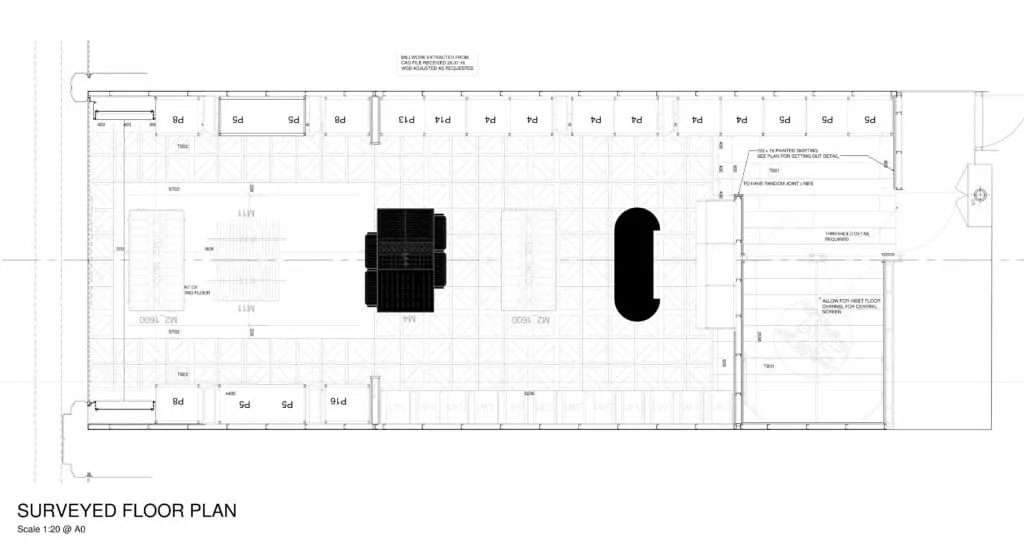

The Plans

More info coming soon…

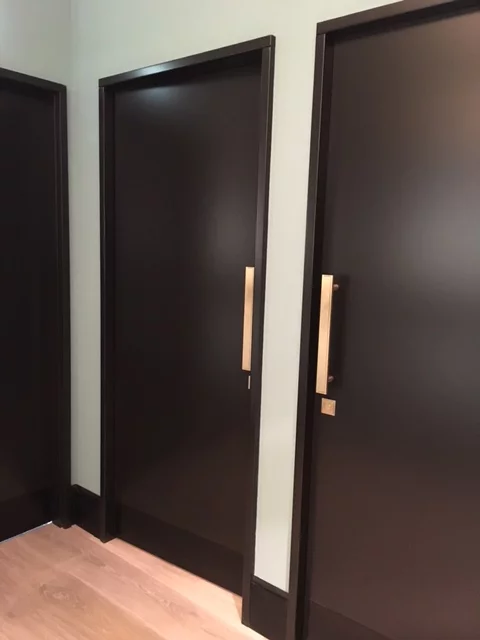

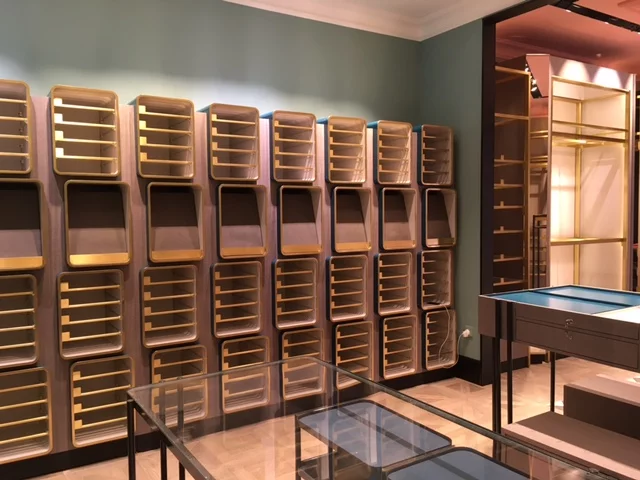

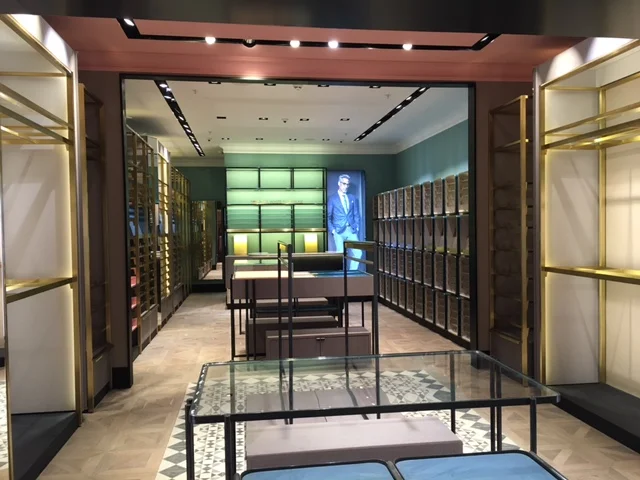

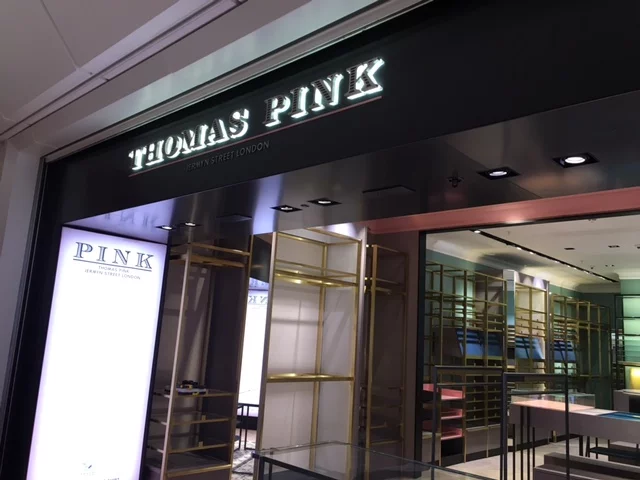

Finished Shop Gallery
